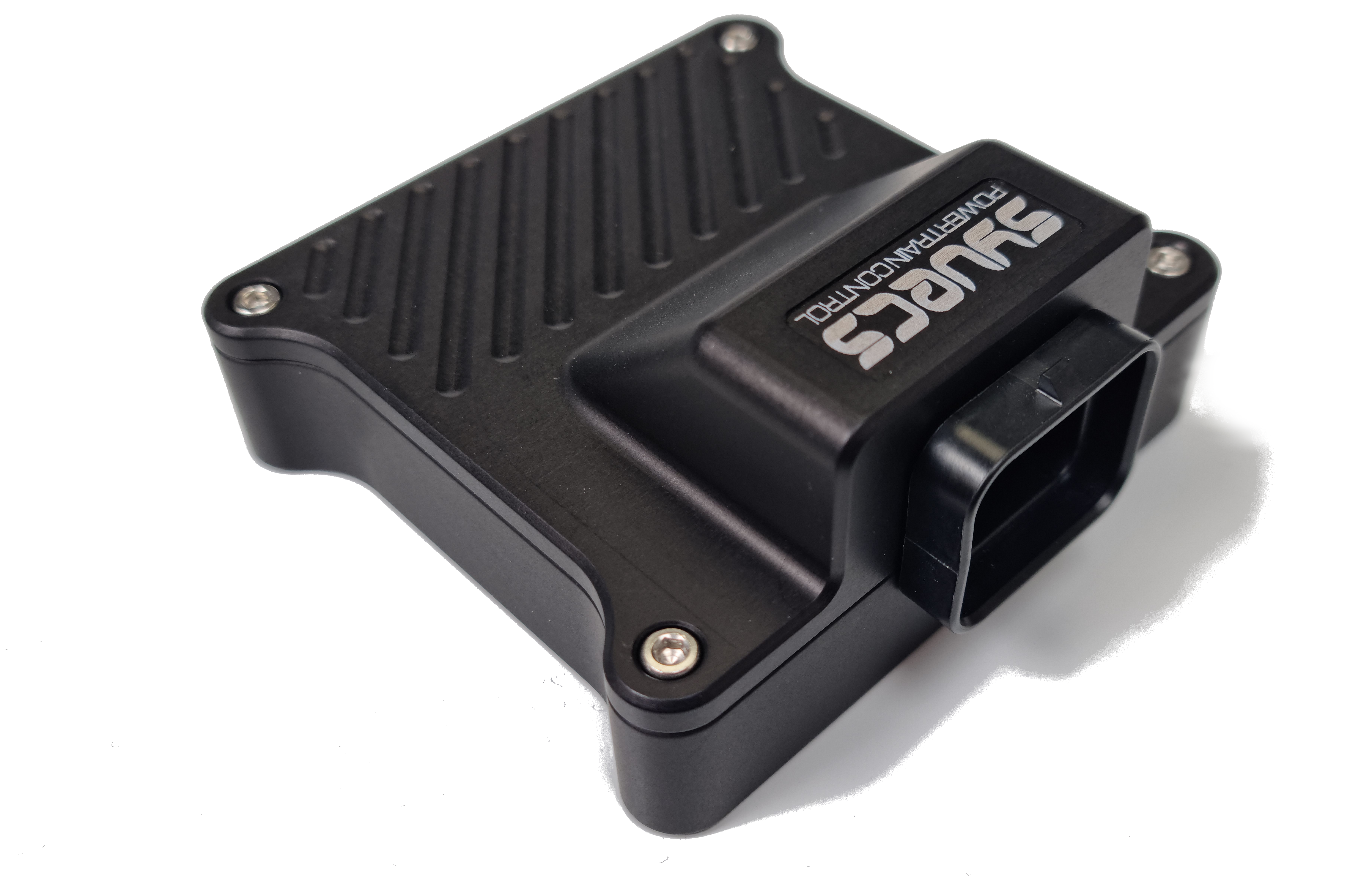

Syvecs AWD / 4WD Controller – Generic

Syvecs AWD / 4WD Controller – Generic

£900.00 Inc. VAT £750.00 Exc. VAT

Designed to control any AWD / 4WD Solenoid or Motor



SKU: SYV-4WD-GEN Category:

Description





The Syvecs Generic AWD Controller is a compact and powerful unit for controlling 4WD/AWD systems in OEM and motorsport applications.

Designed to integrate into any vehicle via the use of a configurable CANbus communications system.  Users are able to receive real-time data from the OEM/Aftermartket systems and uses this data for operational and monitoring strategies, resulting in a precise and accurate control of AWD/4WD control systems.

Additional sensors can also be connected to the controller to provide further functionality and safety such as Awd Temperature, Awd Pressure, Axle Speeds and more.

Advanced users can also setup custom can transmit option with the powerful CANbus section to allow bits or bytes to be sent on the CANbus to keep OEM systems happy or trigger warning Lights, Torque Limits and more.

The AWD controller is fitted with four Half Bridges drivers which are capable of being driven Low or High and able to handle a maximum of 15amps peak/8amp continuously per output. Pin Sharing is present on H-Bridge1/2 and 3/4 to allow up to 16 amps continuous current with paired outputs.

Each of the four H-Bridge Outputs include current monitoring and can be used as part of the protection strategy to ensure solenoids are connected and operating correctly. For example if the Awd Solenoid is driven and no current flow is detected it will immediately invoke a Limp flag or CAN message to a dash. Short circuits are also monitored, and if detected will trigger a over- current situation which will set a limp flag as well and shutdown the output for safety.

The four 0-5v analogue inputs fitted on the controller have an optional 3k 5v pull up present and can be used for an external 2WD switch, Adjustment Pot, Awd Temperature and Awd Pressure.

Four Magneto Resistive inputs are also fitted on the controller that can be used for picking up speed signals from magnetoresistive 2 wire hall speed sensors. The speeds can then be transmitted out on the CANbus also for other useful tasks.

A 6-Axis IMU sensor is also fitted on the board to allow acceleration data to be viewed in real time or linked into strategies.





Some of the Maps available

4 x Base Duty Tables

4 x Adders with enable maps:

Left Foot Braking

Front Slip

Rear Slip

Centre Slip

Multipliers with enable maps

Steering Angle

AWD Temp

AWD Pressure

AWD Potentiometer

Manifold Pressure

Gear

Post Shift

AWD Trim Pot

Tyre Diameter adjustment under sensors

2WD/ Burnout Mode

Via Dedication Switched input

Via Can bus Message

Via OEM Functions

Limiters

Maximum Duty

Launch Control Limit

Duty Rate of Change

Decay/Hold Functions

Limp Mode

Over Current Protection

Over Slip Protection

Over Temp Protection

Cooling Pump control

AWD Cooling pump control logic

Datastream

The Generic unit has full flexible CAN Receive and Transmit

Sensors / Switches

External sensors can be connected to the AWD module and then linearized in our Scal Software



Specifications

Outputs

4 X Half Bridge Outputs

15Amp Peak (100ms) 8Amp Continuous Current Monitoring on each pin

Pin Sharing available on HBR1/2 and HBR3/4 for 16 amps high current motor/solenoids

Inputs

4 x Analogue or switch inputs (0-5V)

4 x MagnetoResistive Circuits

Interfaces

USB For Updates and Config

1 x CAN 2.0B interface for communication with other controllers or logging systems 1 x Kline Interface

6 Axis IMU Chip

Power Supply

6 to 26V input voltage range

Ignition Switch Logic with high current supply

Physical

IP67 Sealed in Automotive Spec -40c to 125c 34 way Superseal 1.0

88mm x 89mm x 40mm

Additional information

Weight 5 kg
Brand

Syvecs

Part Type

Electronic
