Description

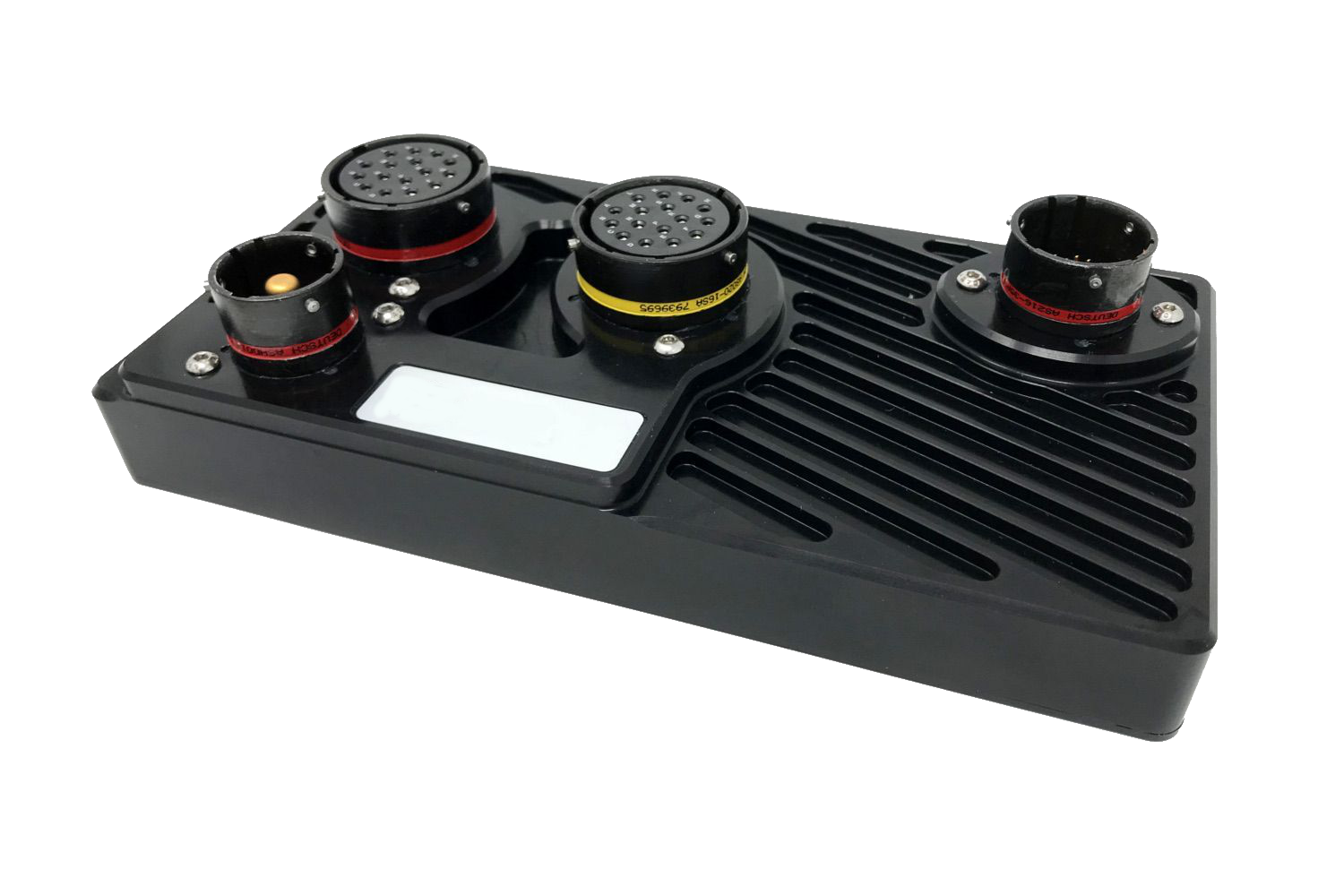

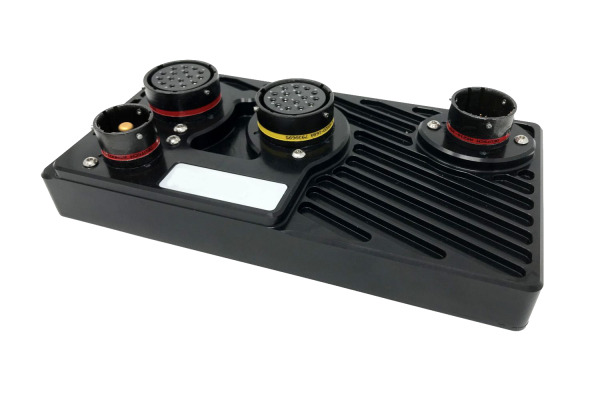

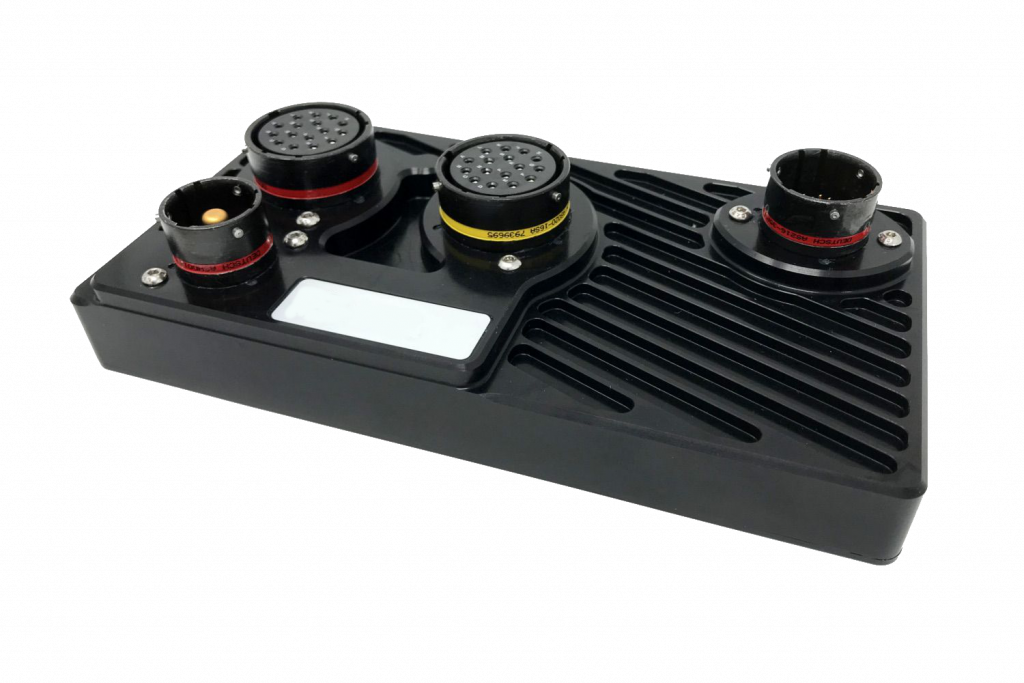

The PDU34A offers advanced features such as the ability to sleep and wake via CAN bus messaging or by using hardware input pins as triggers. The PDU34A comes equipped with an impressive 34 programmable outputs in total, including 10 extremely capable multifunction outputs which can be defined by the user to operate in either discreet high-side or low-side switching, low-side PWM, Half or Full bridge operation. These flexible outputs, as well as the PDU34’s 16 input channels, can be used to increase the I/O compliment of our S7, S8 and S12 Ecus connected using our extremely fast slave link Canbus to drive engine control solenoids or actuators.
Outputs:
34 main Power Outputs, 30 outputs rated to 30A, 4 outputs rated to 8A
10 multifunction high side, low side, PWM, H-Bridge, soft start outputs
(peak current 100A)
20 High Side outputs (peak current 125A)
Output teaming to support very high current devices
All outputs short circuit and thermally protected with multi-stage in-rush control
Combined diagnostic output with reset input
Up to 64 soft outputs via CAN
Inputs:
16 physical switch inputs or, when slaved, general purpose analogue sensor inputs including:
8x frequency measurement inputs (4 optionally bi-polar)
software selectable 3k ohm pull-up resistors
4x inputs capable of programmable “wake up” functionality
Dedicated wake pin
Up to 64 soft inputs via CAN with configurable validation and debounce time
Comms:
x2 100Mbit/s full duplex Ethernet (can be used as Ethernet switch)
x3 CAN 2.0B
RS232C serial interface
LIN Bus
Physical:
6.5V to 40V input voltage
Dedicated 12V logic power input
Regulated 5V sensor supply output with short circuit protection
x2 Deutsch 16 way Power Connectors
x1 Deutsch 32way Connector
x1 M6 Power Stud
Machined Aluminium enclosure
995g
Operating Temperature -20 to +85C
