Syvecs PDUX3

Syvecs PDUX3

£0.00 Inc. VAT £0.00 Exc. VAT

Syvecs Power Distribution units are designed to replace the use of a conventional relay boxs. It provides multi channel solid state logic driven processing, which is fully software configurable using our PDU cal tool. Features include logic inputs and power outputs with validation and debounce settings. RS232 and CAN provide communication to external displays and data loggers

SKU: SYV-PDU3X Category:

Description



The PDUX3 offers advanced features such as the ability to sleep and wake via CAN bus messaging or by using hardware input pins as triggers. The PDU3X comes equipped with an impressive 34 programmable outputs in total, including 10 extremely capable multifunction outputs which can be defined by the user to operate in either discreet high-side or low-side switching, low-side PWM, Half or Full bridge operation. These flexible outputs, as well as the PDUX3 16 input channels, can be used to increase the I/O compliment of our S7, S8 and S12 products connected using our extremely fast slave link Canbus.

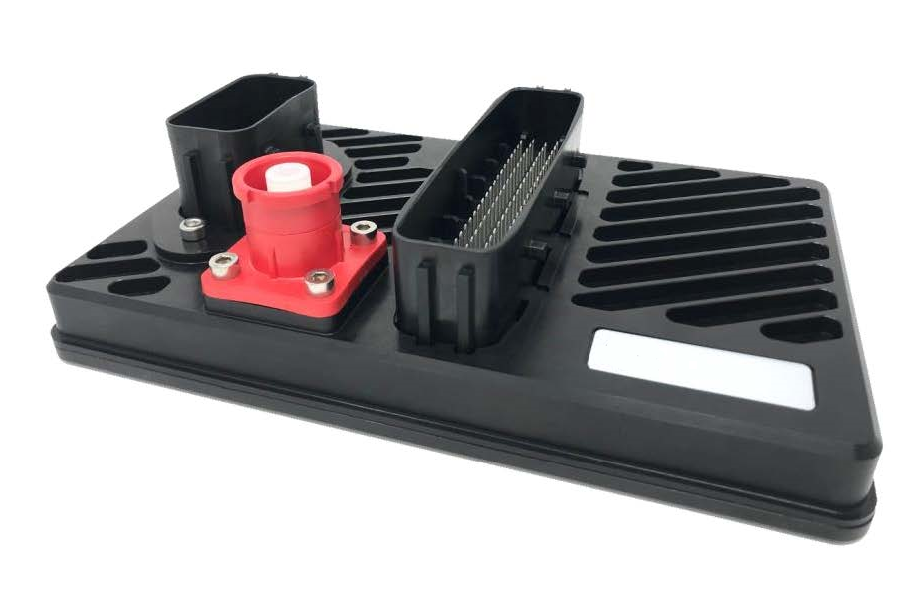

High power motorsport Power Distribution Unit (PDU). Combines a robust billet aluminium case and the very latest power driving technology with the highest efficiency in the industry. A total of 34 output channels with a max current capacity of 350A

Outputs:

 34 main Power Outputs, 20 outputs rated to 30A, 14 outputs rated to 15A
 10 multifunction high side, low side, PWM, H-Bridge, soft start outputs
(peak current 100A)
 20 High Side outputs (peak current 125A)

 4 Additional Low Side Outputs (PWM capable)
 Output teaming to support very high current devices
 All outputs short circuit and thermally protected with multi-stage in-rush control
 Combined diagnostic output with reset input
 Up to 64 soft outputs via CAN

Inputs:

 16 physical switch inputs or, when slaved, general purpose analogue sensor inputs including:
 8x frequency measurement inputs (4 optionally bi-polar)
 software selectable 3k ohm pull-up resistors
 4x inputs capable of programmable “wake up” functionality
 Dedicated wake pin
 Up to 64 soft inputs via CAN with configurable validation and debounce time

Comms:

 x2 100Mbit/s full duplex Ethernet (can be used as Ethernet switch)
 x3 CAN 2.0B
 RS232C serial interface
 LIN Bus

Physical:

 6.5V to 40V input voltage
 Dedicated 12V logic power input
 Regulated 5V sensor supply output with short circuit protection

 2 Leavyseal connectors with a total of 113 pins
 x1 Deutsch HDP 47way Connector
 Amphenol SurLok Power Stud
 Machined Aluminium enclosure
 200x130x54mm (including connectors)
 850g
 Operating Temperature -20 to +85C
