Description

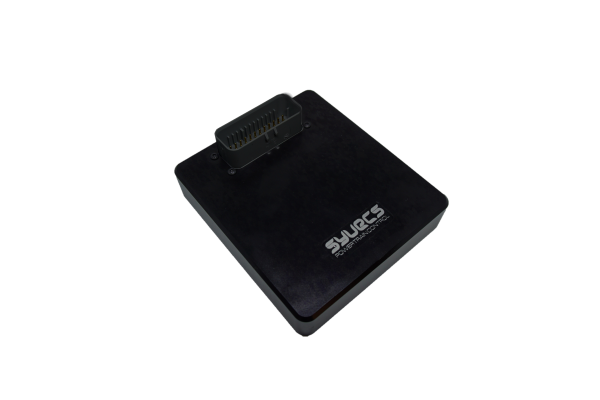

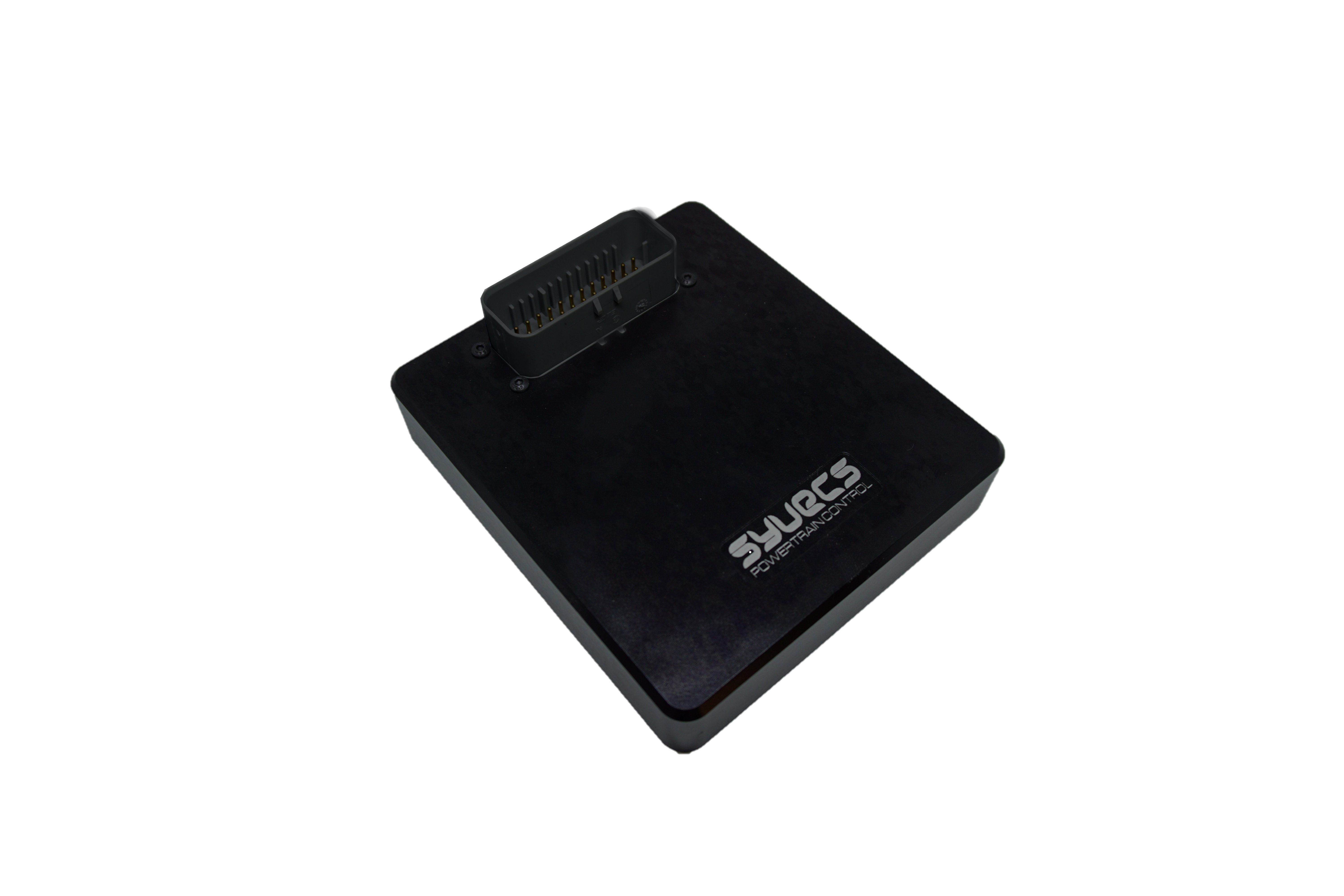

X10 Expander –
Outputs
10 Low side and / or High side outputs (circa 15A each)
4 Half Bridge Outputs (combinable for 2 Full Bridges, etc)
Inputs
10 Analogue or switch inputs (0-5V, Thermistor or switch)
6 of the inputs capable of speed measurement
Interfaces
Ethernet for pc configuration and monitoring connection
2 x CAN 2.0B interface for communication with other controllers or logging systems
Power Supply
6 to 26V input voltage range
Physical
35 way AMP Ampseal male connector
PCB 130 x 115mm
