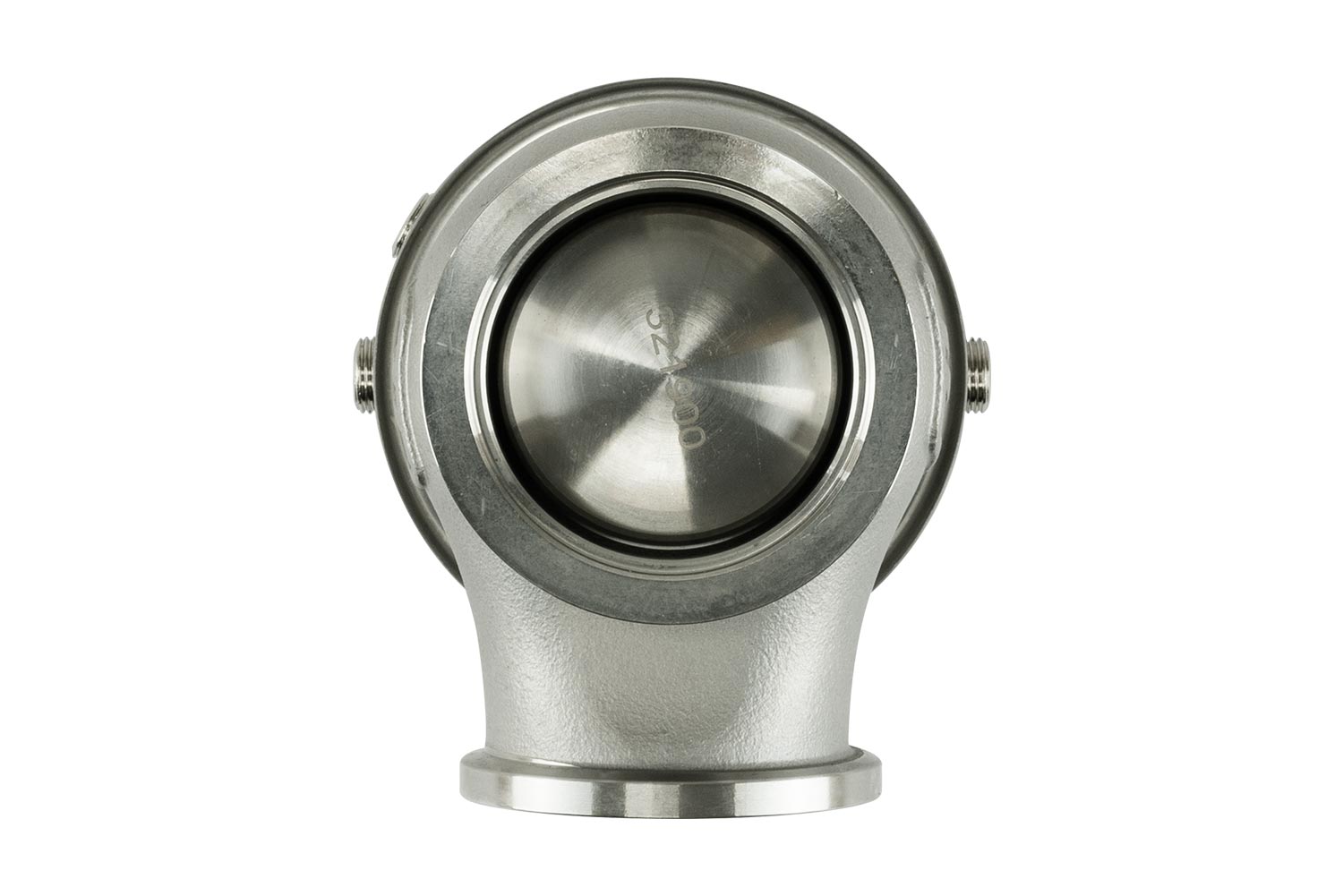

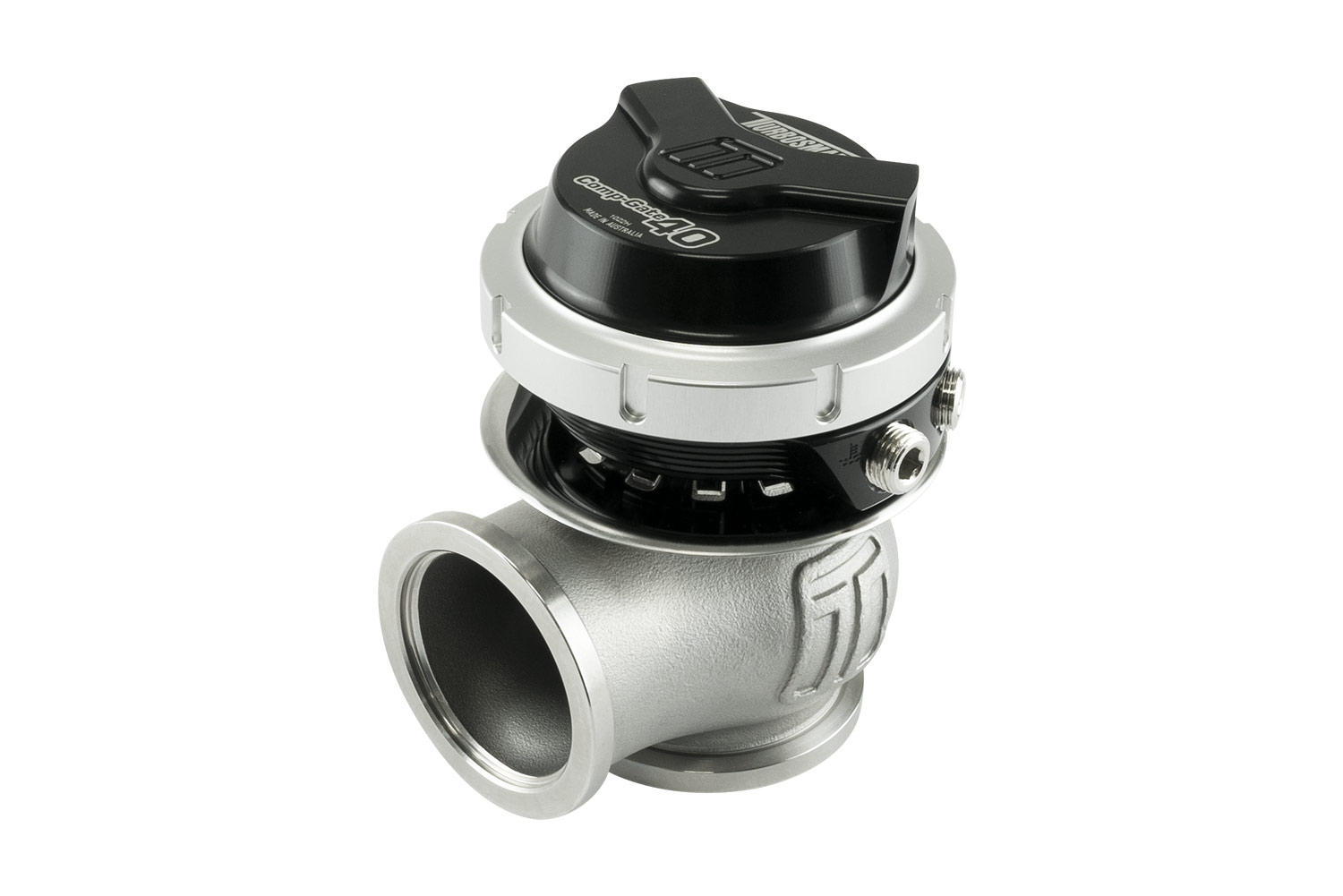

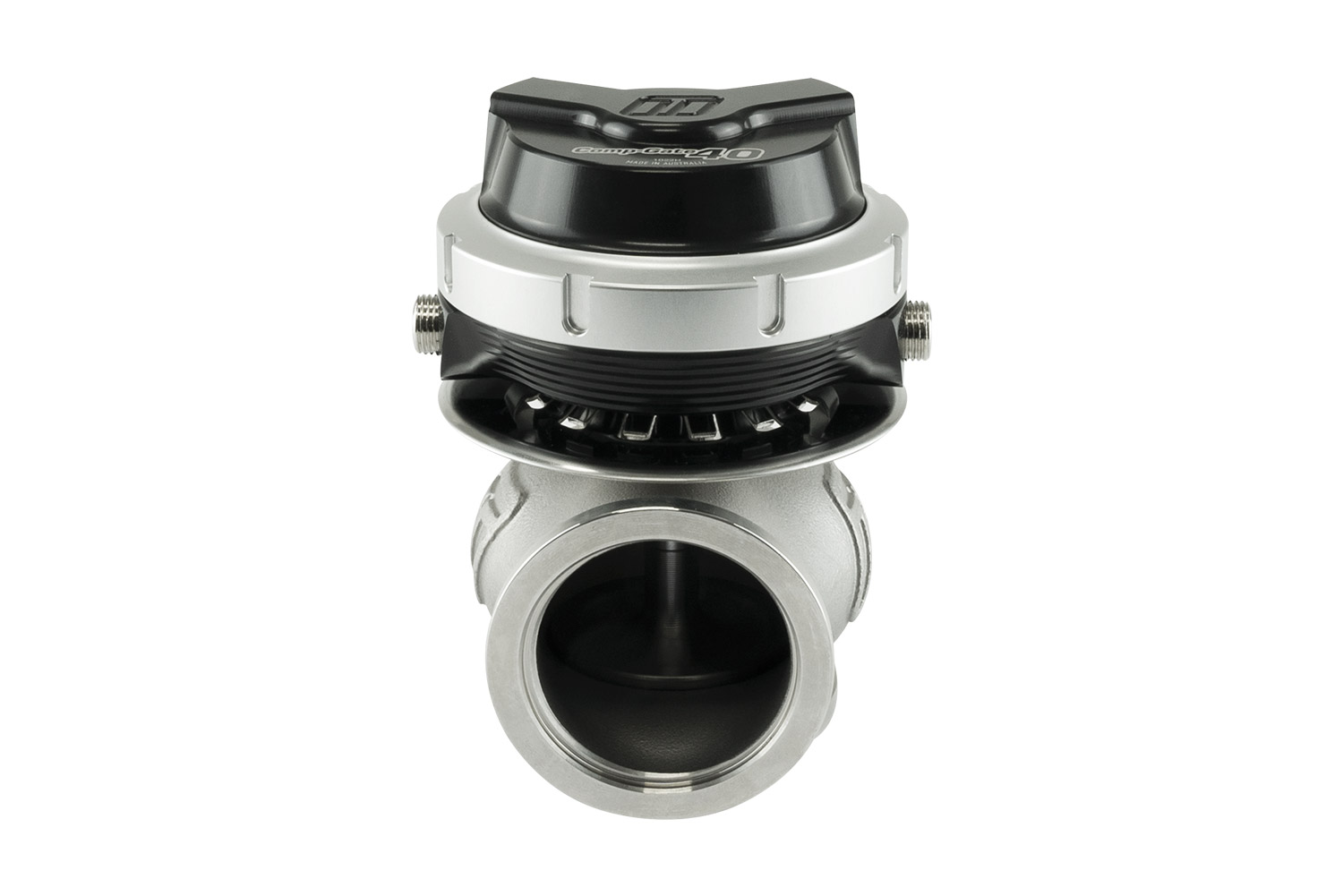

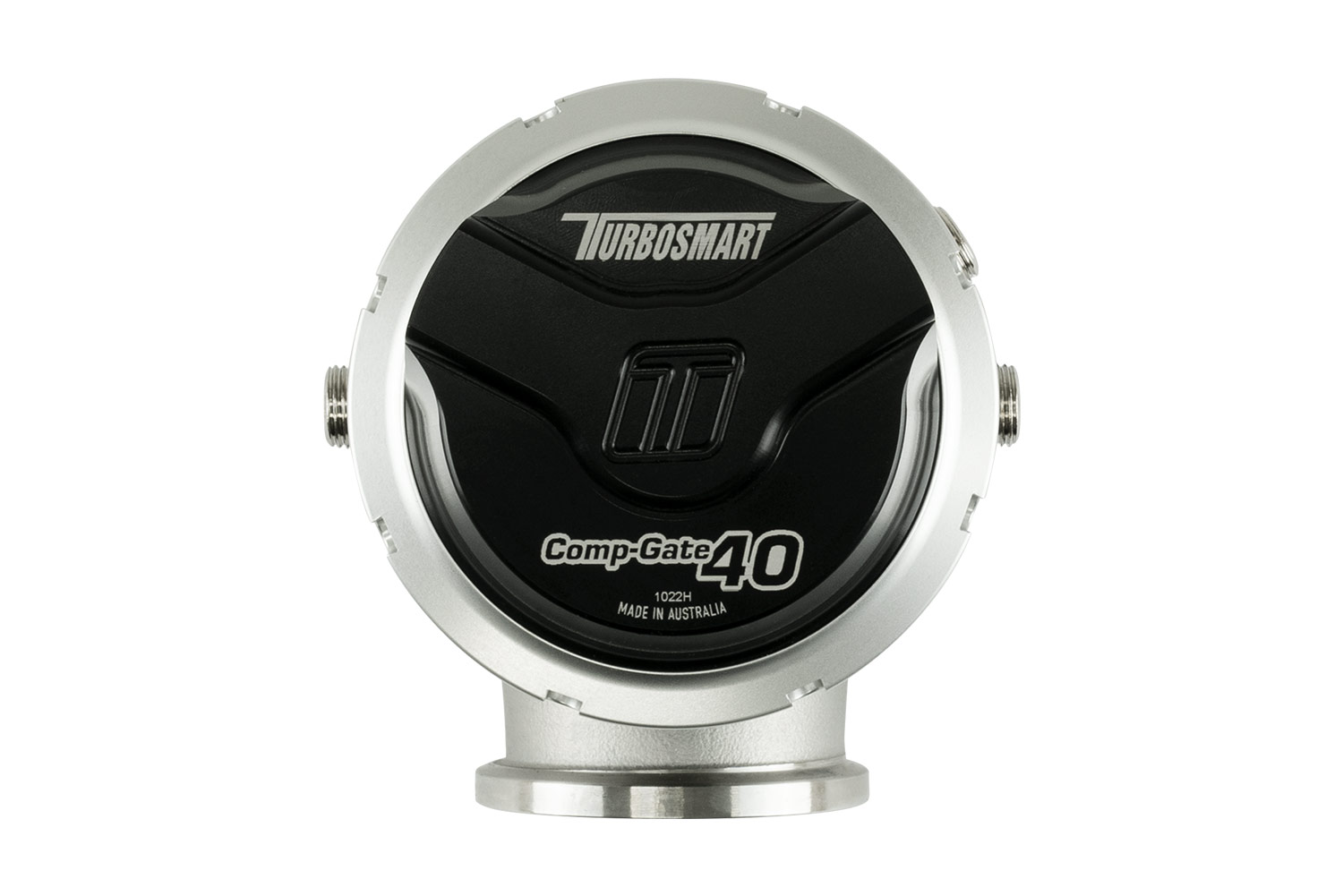

The GenV WG40 CompGate40 External Wastegate is a Motorsport-proven, cost-effective external wastegate – The Highest Flowing Wastegate of its kind. The GenV provides extensive user configuration, world-leading extended thermal performance, fatigue resistance and best-in-class flow performance for optimum control and longevity.
The GenV Range has more features, options and performance than any other gate. The GenV External Wastegate from Turbosmart was a ground-up rework of a classic, and the only feature that rolled over from the Gen4 range was the mounting orientation. CFD optimized and validated in-house for maximum flow and thermal management.ﾠ
A direct fit upgrade to all Gen4 Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base for easy, 360-degree optional routing of reference hoses, strap-type V-band clamps, optional liquid-cooling provision, 1/8″ NPT reference ports and are provided with the full range of available springs.
Optional Wastegate Position Sensor Upgrade
Compressed Gas (ex: Co2) Version
Motorsport Version (CFD driven Heat sink design)
HP (High-Pressure Version) Up to 50psi
eWG (Electronic Actuated) Version
Class Leading, Thermal Performanceﾠ
Class Leading, CFD & Bench Validated Flow Performance
Class Leading Fatigue Resistance
Nitronic 60 Valve Guide & High Temp 347 SS Body
17/7 PH Stainless Steel Springs
Liquid Actuator Cooling Option
Strap Type V-band clamps

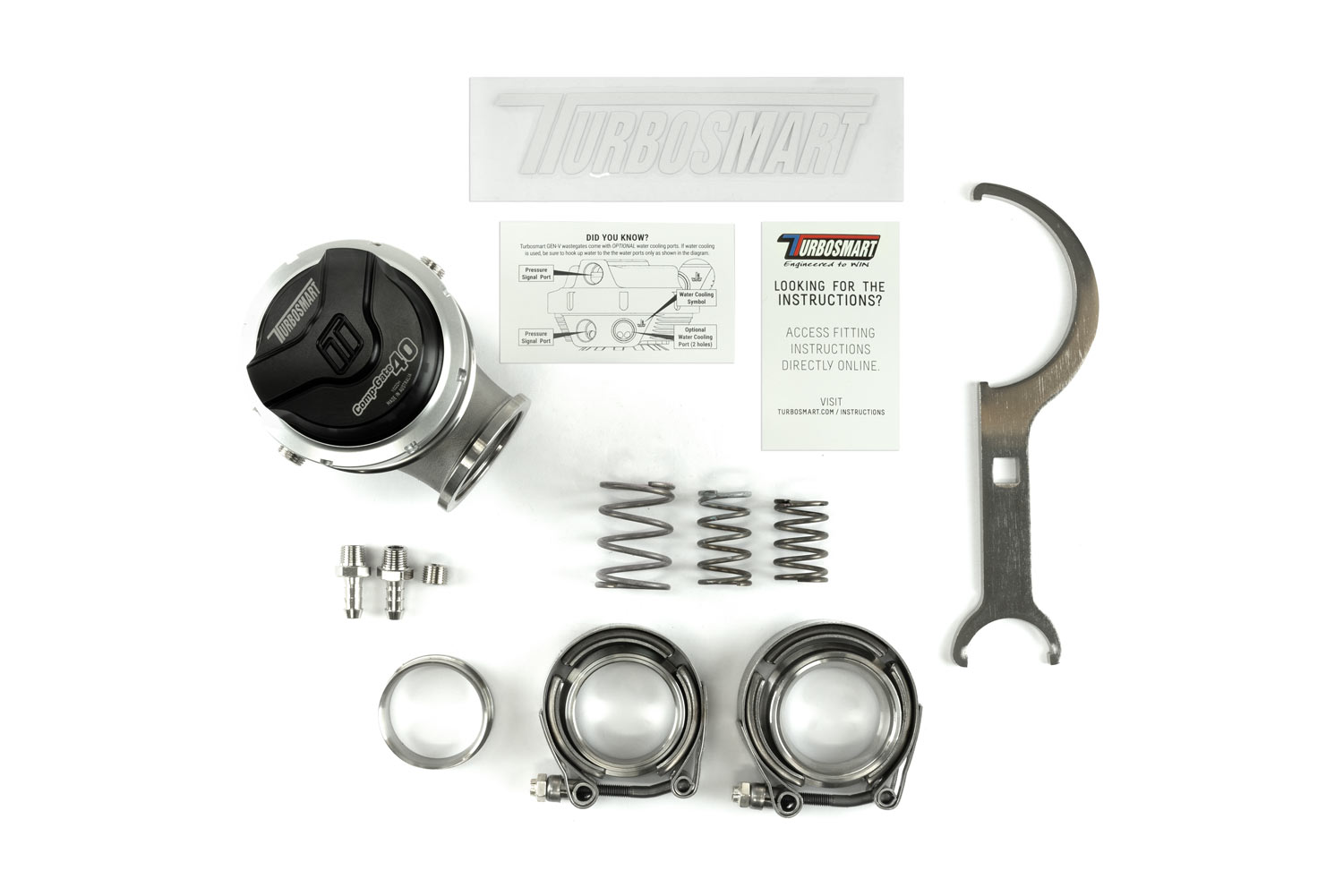

Includes Inlet and Outlet Weld-On Flanges & V-Bands
Fitment Requires Fabrication // Universal Product
Adjustable Product – Springs Options from 3psi to 26psi Available. Springs Pre-Fitted as per the description.
